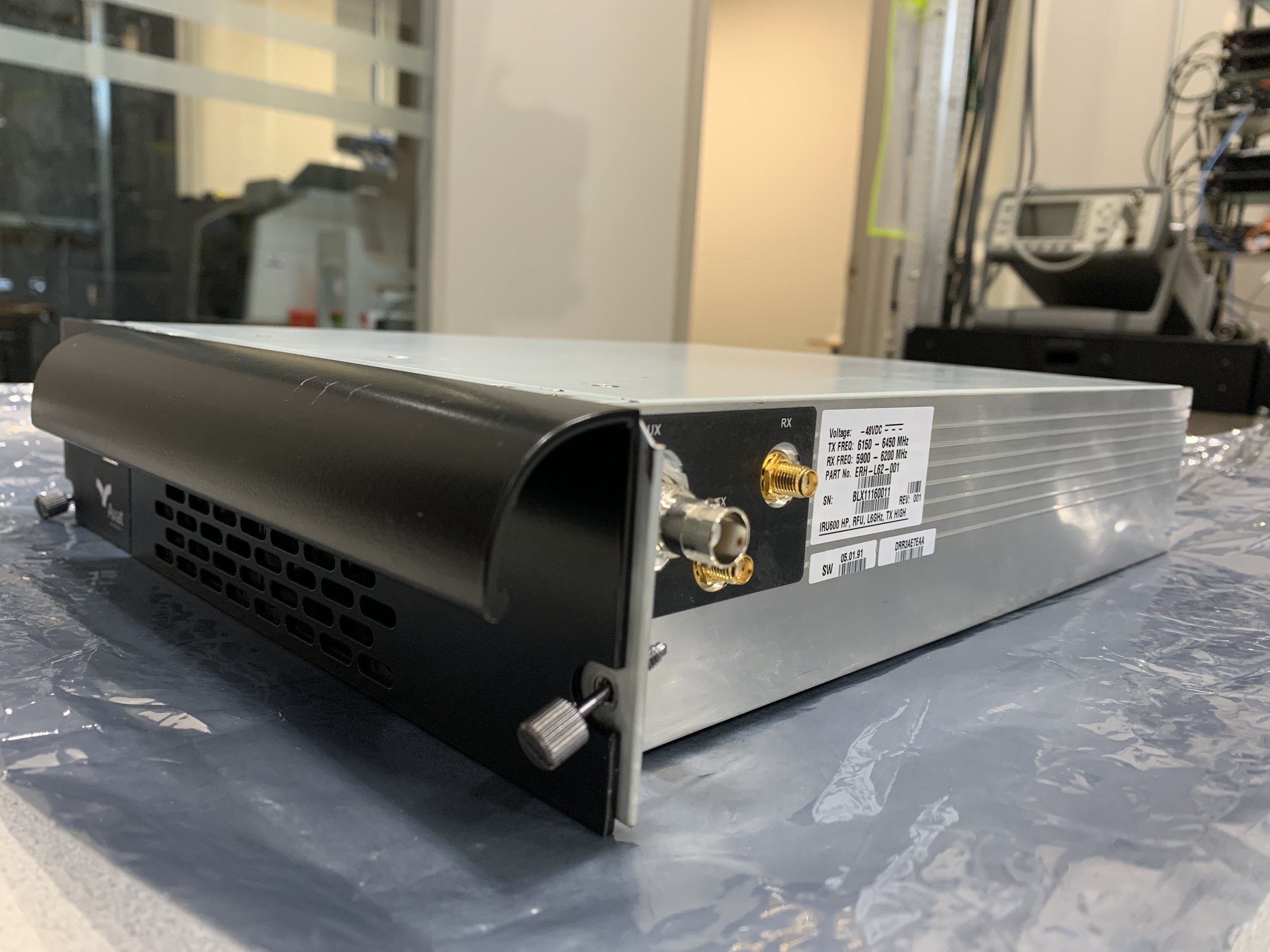

IRU600 HP, RFU, L6GHz, Tx High

Radio
Written By Scott Crosbie
Back

Part No. ERH-L62-001

IRU600 HP, RFU, L6GHz, Tx High, Tx Freq: 6150 - 6450 MHz, Rx Freq: 5900 - 6200 MHz

The IRU 600 is a rack-mounted transceiver unit for co-location with an INU/INUe as an all-indoor installation. It is 1+1 optimized.

Features:

  • Protected/diversity options include:

    • 1+1 hot-standby

    • 1+0 hot-standby-ready

    • Space diversity (dual antennas) with common or split Tx

    • Frequency diversity (single antenna) or frequency diversity with space diversity (dual antennas)

  • Fixed or adaptive modulation profiles are supported (QPSK-256 QAM).

  • IRU 600 is only supported from a RAC 70/7X/70V2/7XV2, RAC 60/6X, or RAC 60E/6XE.

  • Additionally powered via a front-panel D-Sub M/F 2W2 connector for wide-mouth +/- 21 to 60 Vdc supply. Both +ve and -ve pins are isolated from ground.

  • Includes two cooling fans, individually alarmed.
